Packaging Machine, BPC, for deep cavities etc.｜Maruho Hatsujyo Kogyo Co., Ltd.

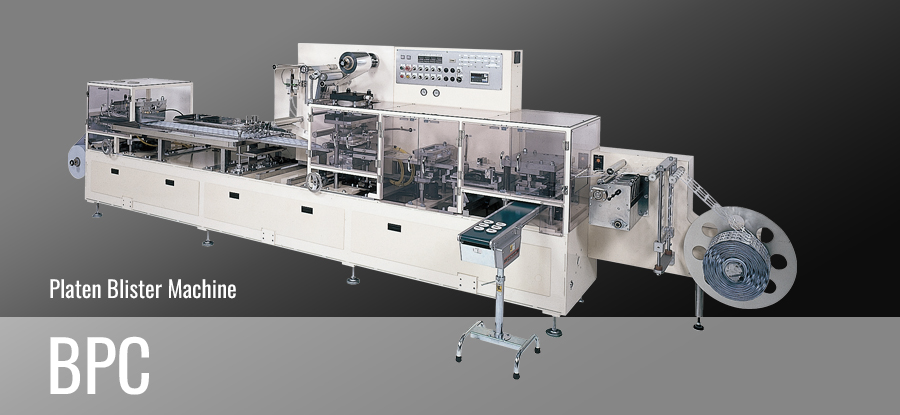

Platen Blister MachineBPC

Tabletop Blister Machine

Tube filling Machine, Liquid filling Machine

Strip Machine

PTP Packaging Machine

Multi Blister Packaging Machine

Ideal for mass-production operations
multiple formats are made available by simply expanding the material width Capable of seamless connection to ancillary equipment for enhanced functionality.
Constantly increasing the list of materials are supported.
supports composite resin materials, aluminum, and biomaterials as well as newer materials.
Versatile packaging application
Supports various packaging types like portion packaging and soft blisters.
Multi-packaging capability achieved through simple format part changes.

Production Speed		Max: 25 cycles
Model Number		BPC
Forming Method		Platen compressed air forming
Forming Method		Platen plug assist forming
Production Speed		Max: 25 cycles
Materials	Forming Materials	CPP, PVC, PVC composite, ACLAR, Soft AL, PS, PET, PE
Materials	Lidding Materials	AL, PES, PET, PE, TYVEK
Materials Width		Min 100 - Max 180 (mm)
Blister Size		Max 200 x 150 (mm)
Utility	Power	3 phase AC200V
Utility	Compressed Air	800 l / min.
Machine Dimension		(W) 5,755 x (D) 1,340 x (H) 1,550 (mm)
Machine Weight		approx. 2,000 kg

*Specifications are subject to change without notice for improvement.
