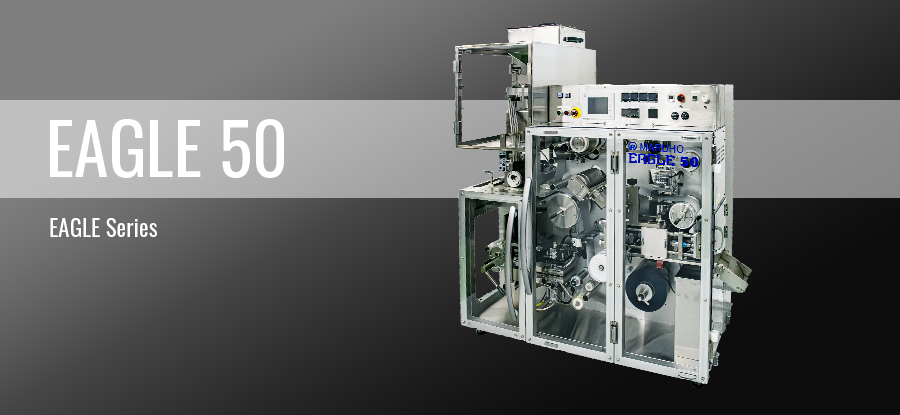

EAGLE SeriesEAGLE 50
Tabletop Blister Machine
Tube filling Machine, Liquid filling Machine
Strip Machine
PTP Packaging Machine
EAGLE LP
(20 blisters/min.)
EAGLE 50
(50 blisters/min.)
EAGLE 100
(100 blisters/min.)
EAGLE 100A
(100 blisters/min. AL/AL,
Resin materials)
EAGLE Rx
(100 blisters/min. Child Resistance)
EAGLE 200
(200 blisters/min.)
PF-H3000/4000
(300-400 blisters/min.)
PF-H6000
(600 blisters/min.)
Multi Blister Packaging Machine
Features
- Supports up to 500 tablets.
- Ideal for stability testing and investigational new drug production.
- Forming tooling compatible with both PVC and CPP materials.
- Lightweight format parts.
- Manual feeding option available.
Specifications
| Model Number | PF-D1 | |
|---|---|---|
| Forming Method | Platen compressed air forming | |
| Platen plug assist forming | ||
| Production Speed | Punching speed | Max 50 cycles / min. |
| Materials | Forming Materials | CPP, PVC, PVC composite, ACLAR |
| Lidding Materials | AL | |
| Materials Width | Min 100 - Max 145 (mm) | |
| Sheet Size | Max 130 x 76 (mm) | |
| Cavity depth | Max 10 (mm) | |
| Utility | Power | 3 phase AC200V |
| Compressed Air | 450 l / min. | |
| Machine Dimension | (W) 1,356 x (D) 750 x (H) 1,645 (mm) | |
| Machine Weight | approx. 700 kg | |
